Your NIE Networks meter records both your imported and exported electricity. This is the meter that is read by NIE on a regular basis.
Please see below for examples of various types of NIE Networks meter or watch the video to show you how to read your generation meter.
If you are on an Economy 7 tariff the export reading is normally the default reading, so you won’t need to press any buttons to obtain your export reading.
![Picture1-(3).jpg Picture1-(3).jpg](/getattachment/747aeee6-3b0e-4c7a-a287-b6da7a0ccd1d/Picture1-(3).jpg)
Press and hold the 'A' button for 3-5 seconds to get the time, and then keep pressing A to cycle through until you see Total with Export above.
![Picture2.jpg Picture2.jpg](/getattachment/a3141f94-fbbb-4246-8c85-fa97235b56fe/Picture2.jpg)

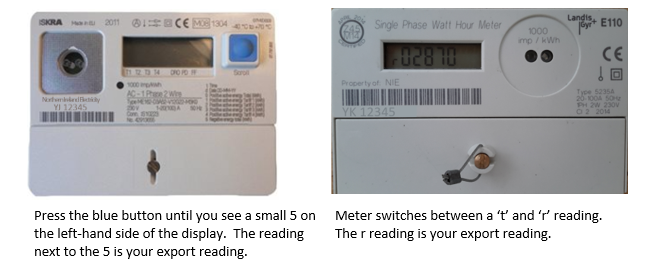

Press the blue button until you see a small 5 on the left-hand side of the display. The reading next to the 5 is your export reading.
![Picture3.jpg Picture3.jpg](/getattachment/48f0ade2-5e79-40ed-bf5b-bc7720a5fea2/Picture3.jpg)
Meter switches between a ‘t’ and ‘r’ reading. The r reading is your export reading.
![Picture4.jpg Picture4.jpg](/getattachment/7be7076c-1fb5-4e2c-97a4-e0ad53d64601/Picture4.jpg)
Press the number 9 button slowly, allowing the display to change each time, until you see ‘Exp’ or ‘Exp Units’, press number 9 again to show your export reading.
![Picture5.jpg Picture5.jpg](/getattachment/9c3fb303-a2d6-4fa4-b24d-291b67fa2854/Picture5.jpg)
Push the blue display button to cycle through time date and rates 1,2,3 and 4.
The next screen displays a read with a small Σ on the same screen below the reading - this is the total export read.
![Picture6.jpg Picture6.jpg](/getattachment/705d95ac-d25e-4ec8-9aaa-a848bacb119e/Picture6.jpg)
Press the blue button until you see r √ this will be your export reading.
![Picture7.jpg Picture7.jpg](/getattachment/1081bdba-6d37-4bf8-847e-e83a05b0c468/Picture7.jpg)
Press the yellow button until you see Export above the reading.
![Picture8.jpg Picture8.jpg](/getattachment/19bf99ad-b77a-4720-9311-9eace79c9887/Picture8.jpg)
Press the black button until you see 5 on the left-hand side of the display.
![Picture9.jpg Picture9.jpg](/getattachment/a97c3123-c595-4a9b-ac49-b6fba41c9cea/Picture9.jpg)
Press the green button until you see a – next to tot, this is your export reading.
![Picture10.jpg Picture10.jpg](/getattachment/81091f1d-1d5f-4c77-a2ac-733962d99213/Picture10.jpg)
Press the top white button until you see totE. This is your export reading.
![Picture11.jpg Picture11.jpg](/getattachment/c3db96de-e4f1-451b-8832-0a5a028bbc0a/Picture11.jpg)
Press the blue button until you see EP.
![Picture12.jpg Picture12.jpg](/getattachment/59aaf24b-04bc-432d-ab68-23050a1faedb/Picture12.jpg)
This meter switches between a ‘0’ and ‘1’ reading. The 1 reading is your export reading
If you don't see your meter type please contact us and we will be happy to help.
